Product Description

Appearance and Overall Performance​

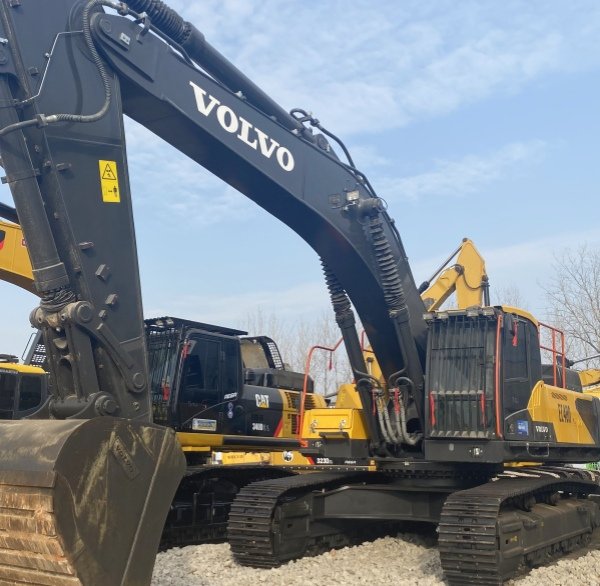

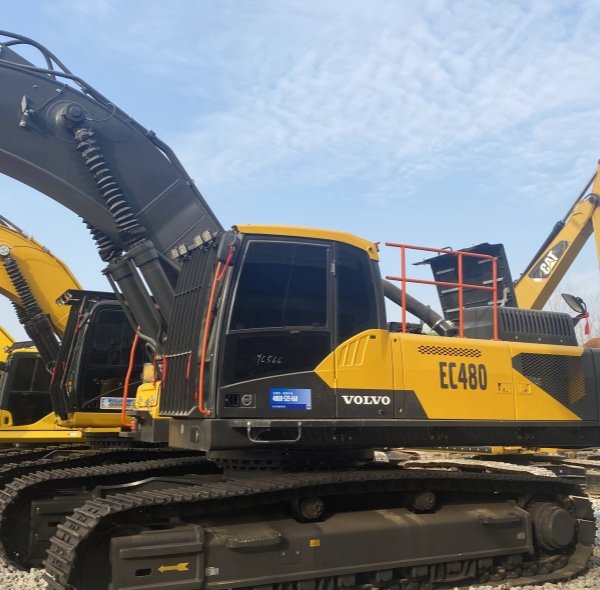

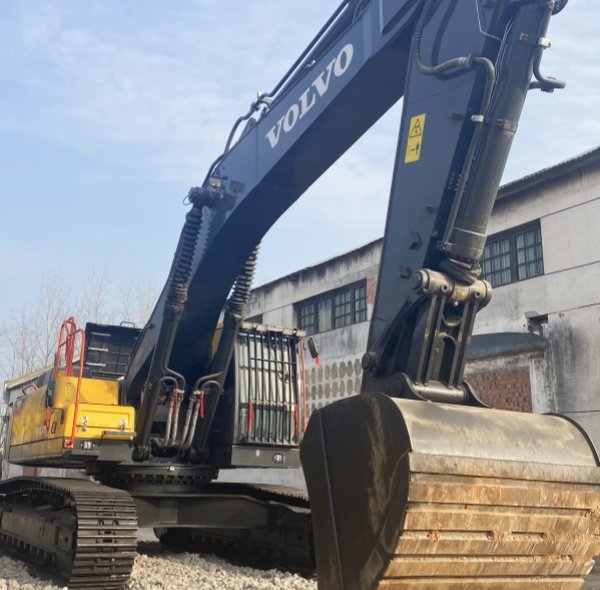

This used Volvo EC480 is a large – sized, heavy – duty crawler excavator, designed for heavy-duty digging, loading, and earthmoving tasks. With a machine operating weight ranging from 47,300 to 53,100 kg. Its bucket capacity varies from 1.77 to 3.8 m³, making it suitable for a wide range of projects, from large – scale construction to mining operations. This pre-owned excavator has a maximum digging radius of 10930 mm and can reach a maximum digging depth of 6580 mm, enabling it to handle tough digging tasks with ease.
Chimark Machinery, with over 20 years of experience in exporting used construction equipment, offers this well-maintained Volvo EC480 used excavator with thorough inspections to ensure reliability.

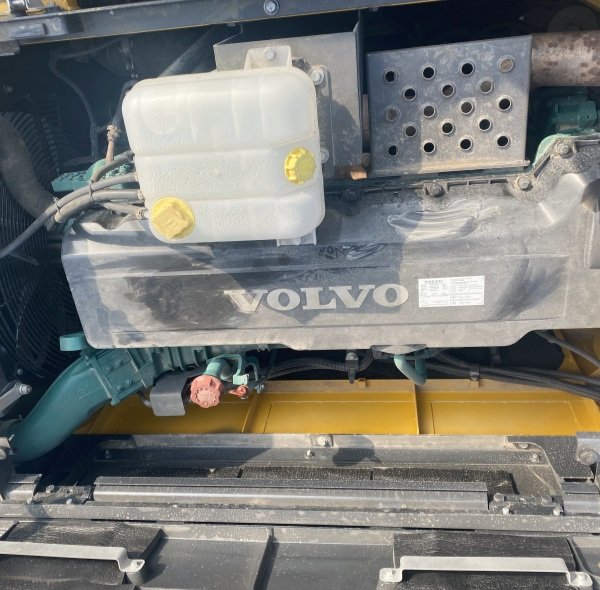

Engine Performance

Equipped with the D13F engine, this used Volvo EC480 digger delivers remarkable power. The engine has a rated power of 270 kW at 1800 rpm and a maximum torque of 1800 N.m at 1400 rpm. With a displacement of 12.8 L and 6 cylinders, it offers consistent and reliable power output. The engine’s design, with a cylinder diameter of 131 mm and stroke of 158 mm, contributes to its fuel – efficient operation, reducing running costs. The engine is known for its durability, making it a smart choice for those seeking affordable used construction machinery.

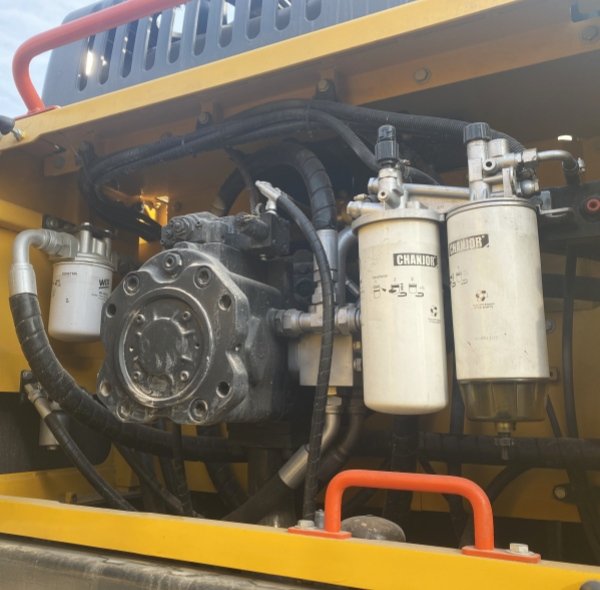

Hydraulic System​

The hydraulic system of this second-hand Volvo EC480 excavator is a key feature. The main pumps provide a maximum flow of 2×358 L/min, while the pilot pump has a flow of 1×32 L/min. The pilot oil circuit operates at 3.9 mpa, the travel hydraulic circuit at 32.4 mpa, and the slewing hydraulic circuit at 25.8 mpa. This well – designed hydraulic system ensures smooth and precise control, allowing operators to perform delicate operations even with such a large machine. The intelligent hydraulic controls improve efficiency, making it a top pick among used mining equipment buyers.

Structural and Other Features​

The Volvo EC480 used construction machinery boasts a reinforced undercarriage and heavy-duty boom for long-term durability. The total transport length is 11630 mm, the width is 3340 mm, and the cab height is 3257 mm. It has an onboard width of 2990 mm and a track ground length of 4370 mm. The large fuel tank, with a capacity of 685 L, ensures long – hours of continuous operation. With a operating weight of 48 tons and a max digging depth of 7.4 meters, this used crawler excavator is ideal for large-scale projects.

Chimark Machinery specializes in importing and exporting used excavators, second-hand loaders, and bulldozers worldwide.
Contact us today for the best deals on reliable used construction equipment!
